HP Storage Management Pack for SCOM

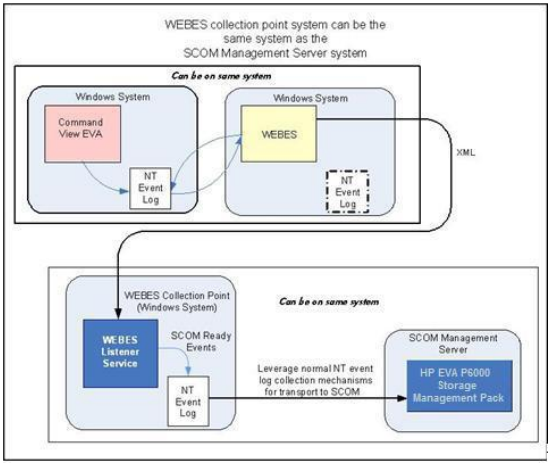

The following diagram shows how to use SCOM to monitor the HP EVA storage.


In my environment, the HP command view and WEBES are installed on the same server named A, SCOM and WEBES listener are installed on the same server named B.

On server B, ensure the WEBES listener is listening on TCP port 8945.

netstat -an | findstr 8945
  TCP               LISTENING

On server A, add the following entry into the environment variables.

SVCTOOLS_HOME C:\Program Files (x86)\HP\svctools

Turn on WEBES and type in the the host name and port of the WEBES listener.

desta start

desta mom on

then run the command to test –  wsea n analyze input “C:\Program Files (x86)\HP\svctools\common\ca\examples\eva_events.evt” not vis

(If the service obligation has expired, you have to reconfigure it via desta servob change)

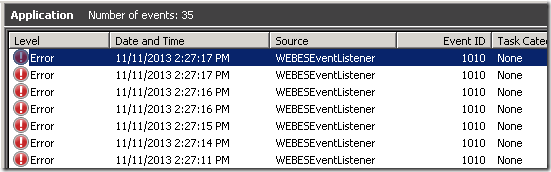

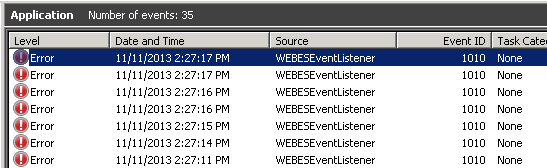

If everything is configured correctly. On the server B. You should be able to see the alerts that forwarded by WEBES from server A in either the WEBESListerLog.log file or the application event log (Source: WEBESEventListener)

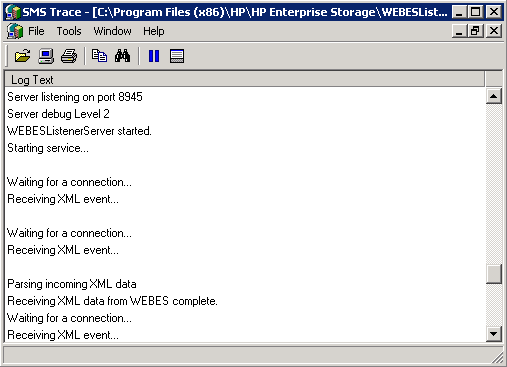

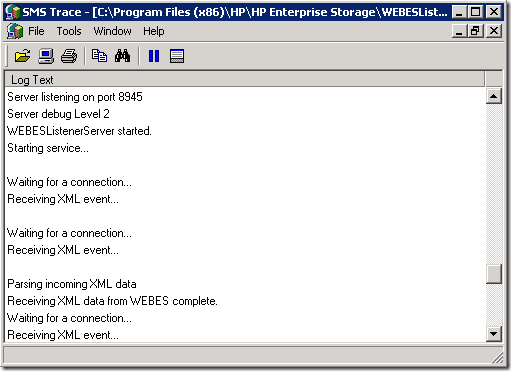

C:\Program Files (x86)\HP\HP Enterprise Storage\WEBESListenerLog.log

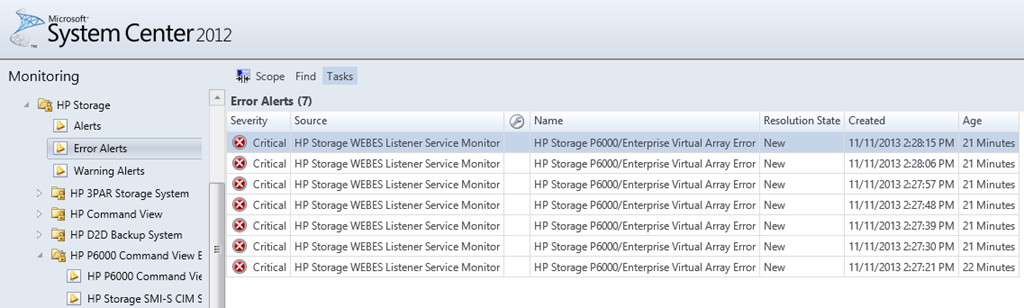

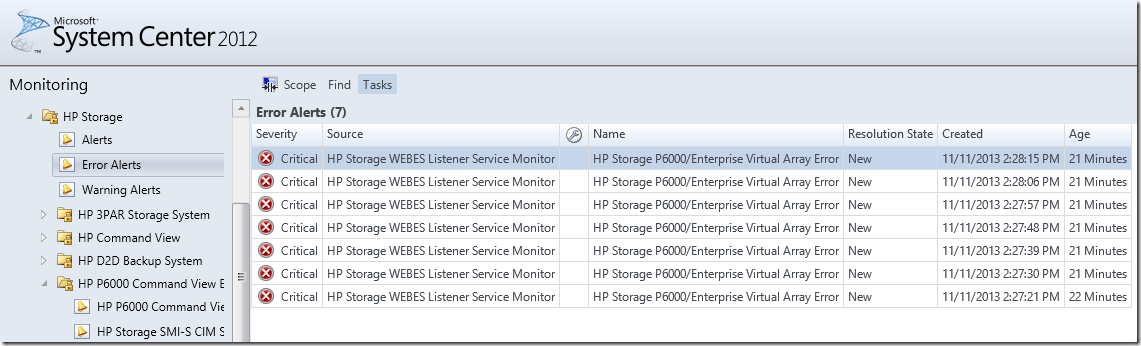

Alert that are showing in SCOM console


wsea command reference


5 thoughts on “HP Storage Management Pack for SCOM

  1. Big question for you. I installed IRS 7.0.8 on a server and have the DESTA.BAT file. But I’m unable to execute desta mom on or desta start. Where did you grab this setup? WEBES 6.4 does not exist on IRS 7.08.

    Also, my desta.bat is in C:\Program Files (x86)\HP\RS\SVCTOOLS\COMMON\BIN

    C:\Program Files (x86)\HP\RS\SVCTOOLS\COMMON\BIN>desta mom on

    Error During Command Parsing: Unrecognized command ‘mom’

    C:\Program Files (x86)\HP\RS\SVCTOOLS\COMMON\BIN>desta start

    Error During Command Parsing: Unrecognized command ‘start’

    Please help 🙂

  2. Hi Jackie

    I try to install CV 9.5, 10.1 and 10.3. All of them does not contain the WEBES monitoring for EVA. So my guest is you still have Webes 6.x installed somewhere on your server

    By chance, do you still have the sources? Should be Webes6_4.msi or WEBES6.4.msi

  3. Hello Jackie chen.
    Now I am using SCOM to monitor HP store, I met 3Par HP and P6000 HP can not be monitor.
    May I ask you if there is a relevant case can be sent to me for reference.
    To monitor P6000 HP, I did not find you command view and WEBES HP installation package. I would like to ask where to download it.
