Nagios: Monitoring Linux

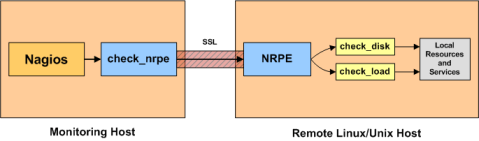

In this sample, Nagios monitors remote Linux host via the plugin named ‘check_nrpe’. And the NRPE package needs to be installed on the remote Linux host, as it works as the Nagios Linux agent.

* The following configurations need to be done on the remote Linux/Unix host:

1) Install prerequisite packages.

yum install -y gcc glibc glibc-common
yum install -y openssl-devel

2) Create nagios account

useradd nagios
passwd nagios

3) Download and install nagios plugins.

wget http://prdownloads.sourceforge.net/sourceforge/nagiosplug/nagios-plugins-1.4.11.tar.gz
tar xvzf nagios-plugins-1.4.11.tar.gz
cd nagios-plugins-1.4.11
export LDFLAGS=-ldl
./configure --with-nagios-user=nagios --with-nagios-group=nagios --enable-redhat-pthread-workaround
make
make install
chown nagios.nagios /usr/local/nagios
chown -R nagios.nagios /usr/local/nagios/libexec/

4) Download and install NRPE.

wget http://sourceforge.net/projects/nagios/files/nrpe-2.x/nrpe-2.12/nrpe-2.12.tar.gz
tar xvfz nrpe-2.12.tar.gz
cd nrpe-2.12
./configure
make all
make install-plugin
make install-daemon
make install-daemon-config
make install-xinetd

5) Setup NRPE to run as daemon.

vi /etc/xinetd.d/nrpe
add the nagios server IP here: only_from   = 127.0.0.1 10.1.1.104
vi /etc/services
add this line: nrpe            5666/tcp                     #NRPE
service xinetd restart

6) Modify the nrpe.cfg configuration file if you want to customize it.

vi /usr/local/nagios/etc/nrpe.cfg

* The following configurations need to be done on the Nagios server:

1) Download and install the NRPE plugin.

wget http://sourceforge.net/projects/nagios/files/nrpe-2.x/nrpe-2.12/nrpe-2.12.tar.gz
tar xvfz nrpe-2.12.tar.gz cd nrpe-2.12
./configure
make all
make install-plugin

2) Create host and service for the remote Linux host.

vi /usr/local/nagios/etc/objects/linux.cfg

# host definition
define host{
    use linux-server
    host_name RHEL02
    alias RHEL02
    address 10.1.1.102 ;remote linux server IP address
    contact_groups admins
}

# service definition
define service{
    use generic-service
    host RHEL02
    service_description Root Partition
    contact_groups admins
    check_command check_nrpe!check_local_disk
}

3) Edit the command.cfg and nagios.cfg files.

vi /usr/local/nagios/etc/objects/commands.cfg

Add the following lines:
# check_nrpe
define command{
  command_name check_nrpe
  command_line $USER1$/check_nrpe -H $HOSTADDRESS$ -c $ARG1$
}

vi /usr/local/nagios/etc/nagios.cfg

Add the following lines:
# Definitions for monitoring a Linux machine
cfg_file=/usr/local/nagios/etc/objects/linux.cfg

4) Verfiy the nagios configurations.

alias verinagios='/usr/local/nagios/bin/nagios -v /usr/local/nagios/etc/nagios.cfg'
verinagios

* you can make the alias permanent by adding alias verinagios=’/usr/local/nagios/bin/nagios -v /usr/local/nagios/etc/nagios.cfg’ to your profile ~/.bashrc

4) Reload the nagios service.

service nagios reload

Here we go. The newly added Linux host should be listed in the monitored hosts now:
