As I mentioned last Friday, I can not wait to see how the TSM operation center works. I have installed it in my Sandbox environment. The installation process supposes to be pretty straight if your server is named correctly. In my case, my server does not have a valid name that the TSM Operation Center accepts. This is how I did it:
1) Download the package ‘6.4.1.000-TIV-TSMOC-Windows.exe’ from IBM fix central, and double click to let it self extract to the same folder.

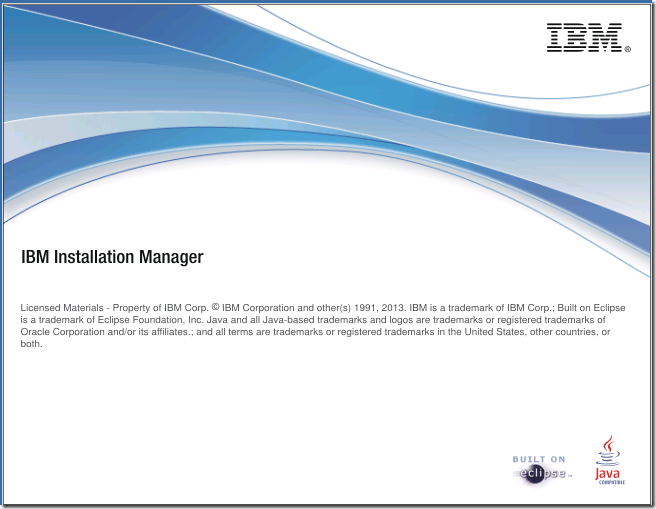

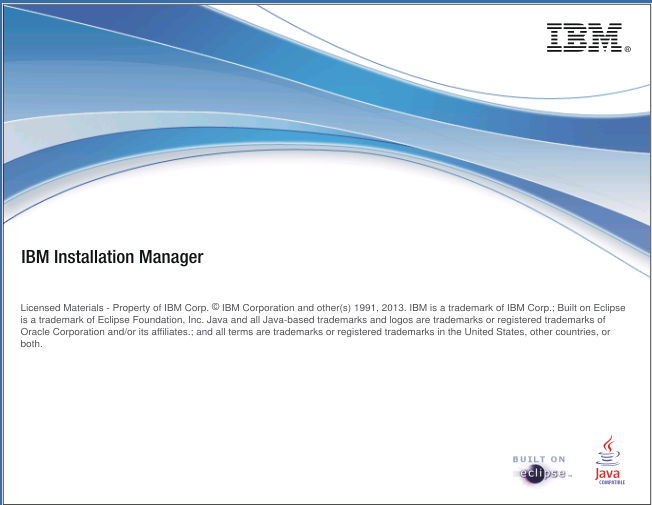

2) Double click ‘install.bat’ to kick off the installation

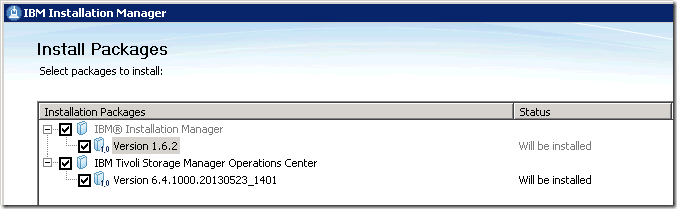

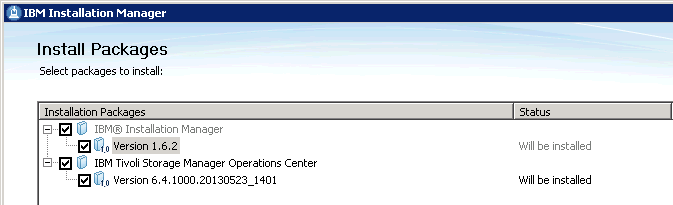

3) Tick to install ‘IBM Installation Manager’ and ‘IBM Tivoli Storage Manager Operations Center’.

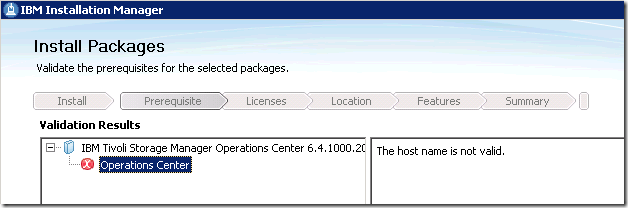

4) Oops! It complains the host name is not valid. My server is named as TSM_Sandbox in which the underscore is not considered as a valid character for server name.
5) Then I tried the command method to install to see if I can get any luck or more information.
c:\software\TSM>install.bat -c
Preprocessing the input.
Loading repositories…
Preparing and resolving the selected packages…
Preparing and resolving the selected packages…
=====> IBM Installation Manager> Install
Select packages to install:
1. [X] IBM® Installation Manager 1.6.2
2. [X] IBM Tivoli Storage Manager Operations Center 6.4.1000.20130523_1401
O. Check for Other Versions, Fixes, and Extensions
N. Next, C. Cancel
—–> [N]
=====> IBM Installation Manager> Install> Licenses
Read the following license agreements carefully.
View a license agreement by entering the number:
1. IBM Installation Manager – License Agreement
Options:
A. [ ] I accept the terms in the license agreement
D. [ ] I do not accept the terms in the license agreement
B. Back, C. Cancel
—–> [C] A
=====> IBM Installation Manager> Install> Licenses
Read the following license agreements carefully.
View a license agreement by entering the number:
1. IBM Installation Manager – License Agreement
Options:
A. [X] I accept the terms in the license agreement
D. [ ] I do not accept the terms in the license agreement
B. Back, N. Next, C. Cancel
—–> [N]
=====> IBM Installation Manager> Install> Licenses> Shared Directory
Installation Manager installation location:
C:\Program Files\IBM\Installation Manager\eclipse
Shared Resources Directory:
C:\Program Files\IBM\IBMIMShared
Options:
L. Change Installation Manager Installation Location
M. Change Shared Resources Directory
B. Back, N. Next, C. Cancel
—–> [N]
Finding compatible package groups…
=====> IBM Installation Manager> Install> Licenses> Shared Directory> Location
New package group:
IBM Tivoli Storage Manager
Selected group id: “IBM Tivoli Storage Manager”
Selected location: “C:\Program Files\Tivoli\TSM”
Selected architecture: 64-bit
Options:
M. Change Location
B. Back, N. Next, C. Cancel
—–> [N]
.
=====> IBM Installation Manager> Install> Licenses> Shared Directory>
Location> Features
IBM® Installation Manager
IBM Tivoli Storage Manager Operations Center
1. [X] Operations Center
B. Back, N. Next, C. Cancel
—–> [N]
=====> IBM Installation Manager> Install> Licenses> Shared Directory>
Location> Features> Custom panels
—- Configuration for IBM Tivoli Storage Manager Operations Center 6.4.1000.201
30523_1401
Specify the port numbers – Nonsecure (http) port
—–> [11080]
Specify the port numbers – Secure (https) port
—–> [11090]
—- Specify password
Password length
– Minimum: 6 characters
– Maximum: 64 characters
The password must contain at least:
– One uppercase letter (A – Z)
– One lowercase letter (a – z)
– One digit (0 – 9)
– Two non-alphanumeric characters: ~ ! @ # $ % ^ & * _ – + = ` | ( ) {
} [ ] : ; < > , . ? /
Enter password
—–>
ERROR: Ensure that the password contains at least two non-alphanumeric character
s. Valid characters are: ~ ! @ # $ % ^ & * _ – + = ` | ( ) { } [ ] : ; < > , . ?
/
Enter any key to return
—–>
Enter password
—–>
Confirm password
—–>
B. Back, N. Next, C. Cancel
—–> [N]
=====> IBM Installation Manager> Install> Licenses> Shared Directory>
Location> Features> Custom panels> Summary
Target Location:
Package Group Name : IBM Installation Manager
Installation Directory : C:\Program Files\IBM\Installation Manager\eclipse
Package Group Name : IBM Tivoli Storage Manager
Installation Directory : C:\Program Files\Tivoli\TSM
Shared Resources Directory : C:\Program Files\IBM\IBMIMShared
Translations:
English
Packages to be installed:
IBM® Installation Manager 1.6.2
IBM Tivoli Storage Manager Operations Center 6.4.1000.20130523_1401
Options:
G. Generate an Installation Response File
B. Back, I. Install, C. Cancel
—–> [I]
25% 50% 75% 100%
——————|——————|——————|——————|
………………………………………………………………….
=====> IBM Installation Manager> Install> Licenses> Shared Directory>
Location> Features> Custom panels> Summary> Completion
There were problems during the installation.
ERROR: The host name is not valid.
V. View Message Details
Options:
F. Finish
—–> [F] V
=====> IBM Installation Manager> Error
ERROR: The host name is not valid.
Details:
Message ID: ANRI0011E
The host name must contain less than 255 characters and can contain only the fol
lowing characters: uppercase or lowercase letters (A – Z and a – z), numbers (0
– 9), a period (.), or a hyphen (-). The host name cannot end with a hyphen (-).
Update the host name on this system, or install on a system with a valid host na
me.
O. OK, D. Hide Details
—–> [O]
6) Based on the above information, now I know the underscore is not a valid character for server name. I either rename my server or install the OC on another server with a proper name.
7) BUT I don’t want to neither rename my server nor go to another server. I played some tricks: add the TSM-Sandbox to my host file and set the computer name to TSM-Sandbox in the dos session. And it works!!
c:\software\TSM>echo %computername%
TSM_SANDBOX
c:\software\TSM>set computername=TSM-SANDBOX
c:\software\TSM>echo %computername%
TSM-SANDBOX
c:\software\TSM>install.bat -c
Preprocessing the input.
Loading repositories…
Preparing and resolving the selected packages…
Preparing and resolving the selected packages…
=====> IBM Installation Manager> Install
Select packages to install:
1. [X] IBM® Installation Manager 1.6.2
2. [X] IBM Tivoli Storage Manager Operations Center 6.4.1000.20130523_1401
O. Check for Other Versions, Fixes, and Extensions
N. Next, C. Cancel
—–> [N]
=====> IBM Installation Manager> Install> Licenses
Read the following license agreements carefully.
View a license agreement by entering the number:
1. IBM Installation Manager – License Agreement
Options:
A. [ ] I accept the terms in the license agreement
D. [ ] I do not accept the terms in the license agreement
B. Back, C. Cancel
—–> [C] A
=====> IBM Installation Manager> Install> Licenses
Read the following license agreements carefully.
View a license agreement by entering the number:
1. IBM Installation Manager – License Agreement
Options:
A. [X] I accept the terms in the license agreement
D. [ ] I do not accept the terms in the license agreement
B. Back, N. Next, C. Cancel
—–> [N] N
=====> IBM Installation Manager> Install> Licenses> Shared Directory
Installation Manager installation location:
C:\Program Files\IBM\Installation Manager\eclipse
Shared Resources Directory:
C:\Program Files\IBM\IBMIMShared
Options:
L. Change Installation Manager Installation Location
M. Change Shared Resources Directory
B. Back, N. Next, C. Cancel
—–> [N] N
Finding compatible package groups…
=====> IBM Installation Manager> Install> Licenses> Shared Directory> Location
New package group:
IBM Tivoli Storage Manager
Selected group id: “IBM Tivoli Storage Manager”
Selected location: “C:\Program Files\Tivoli\TSM”
Selected architecture: 64-bit
Options:
M. Change Location
B. Back, N. Next, C. Cancel
—–> [N] N
.
=====> IBM Installation Manager> Install> Licenses> Shared Directory>
Location> Features
IBM® Installation Manager
IBM Tivoli Storage Manager Operations Center
1. [X] Operations Center
B. Back, N. Next, C. Cancel
—–> [N] N
=====> IBM Installation Manager> Install> Licenses> Shared Directory>
Location> Features> Custom panels
—- Configuration for IBM Tivoli Storage Manager Operations Center 6.4.1000.201
30523_1401
Specify the port numbers – Nonsecure (http) port
—–> [11080]
Specify the port numbers – Secure (https) port
—–> [11090]
—- Specify password
Password length
– Minimum: 6 characters
– Maximum: 64 characters
The password must contain at least:
– One uppercase letter (A – Z)
– One lowercase letter (a – z)
– One digit (0 – 9)
– Two non-alphanumeric characters: ~ ! @ # $ % ^ & * _ – + = ` | ( ) {
} [ ] : ; < > , . ? /
Enter password
—–>
Confirm password
—–>
B. Back, N. Next, C. Cancel
—–> [N]
=====> IBM Installation Manager> Install> Licenses> Shared Directory>
Location> Features> Custom panels> Summary
Target Location:
Package Group Name : IBM Installation Manager
Installation Directory : C:\Program Files\IBM\Installation Manager\eclipse
Package Group Name : IBM Tivoli Storage Manager
Installation Directory : C:\Program Files\Tivoli\TSM
Shared Resources Directory : C:\Program Files\IBM\IBMIMShared
Translations:
English
Packages to be installed:
IBM® Installation Manager 1.6.2
IBM Tivoli Storage Manager Operations Center 6.4.1000.20130523_1401
Options:
G. Generate an Installation Response File
B. Back, I. Install, C. Cancel
—–> [I]
25% 50% 75% 100%
——————|——————|——————|——————|
………………………………………………………………….
=====> IBM Installation Manager> Install> Licenses> Shared Directory>
Location> Features> Custom panels> Summary> Completion
The install completed successfully.
INFORMATION: The Tivoli Storage Manager Operations Center is now installed. You
can access it at the following URL:
Options:
F. Finish
—–> [F]

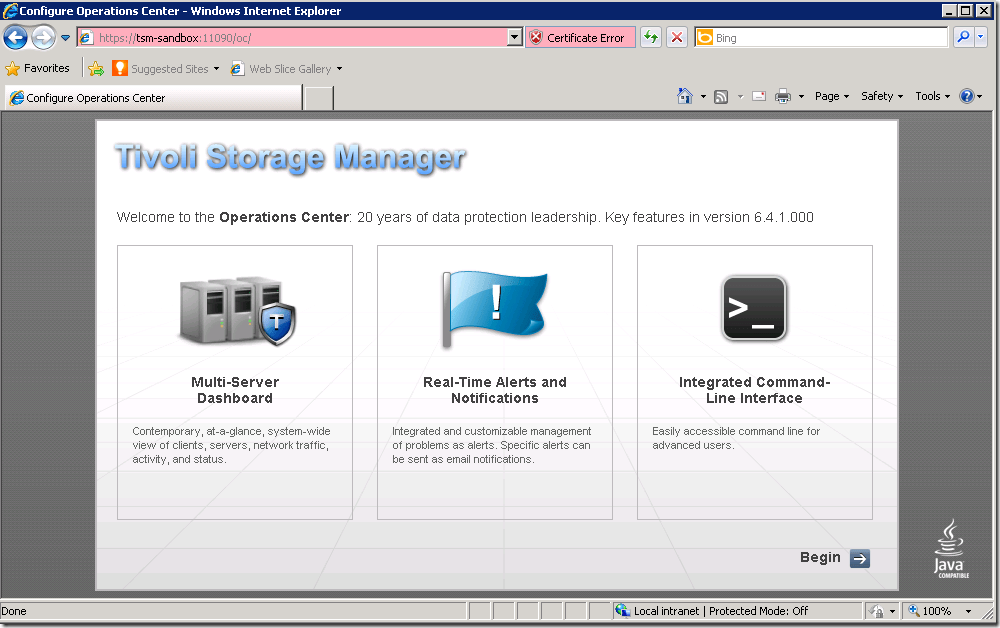

8) Type https://TSM-sandbox:11090/oc in the browser. Here we go~

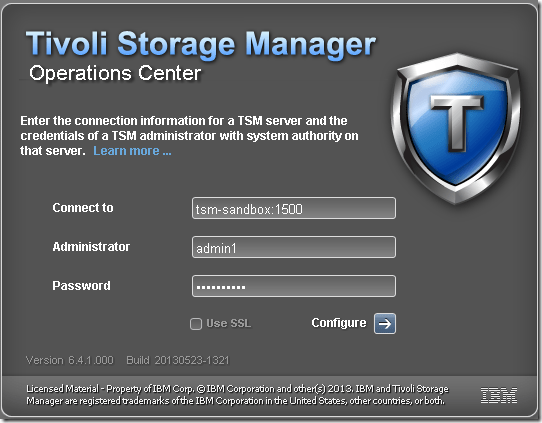

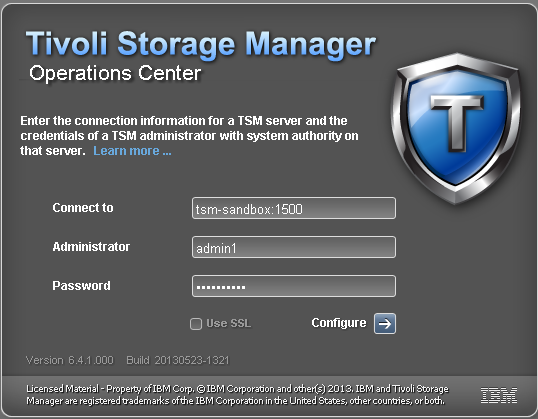

9) Login as the TSM admin.

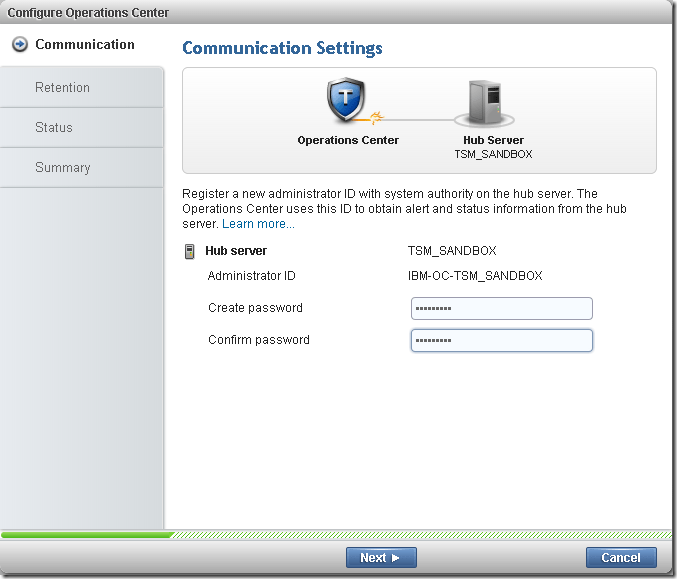

10) Register a new admin ID on the hub server (which is TSM_Sandbox).

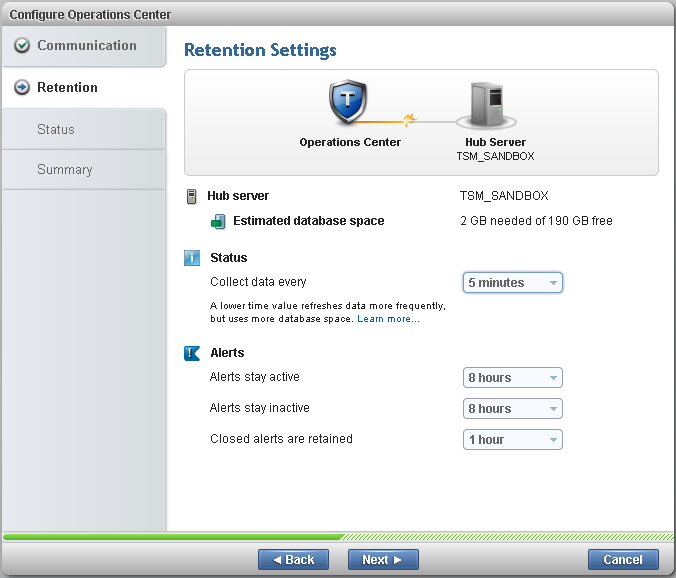

11) Configure the retention settings.

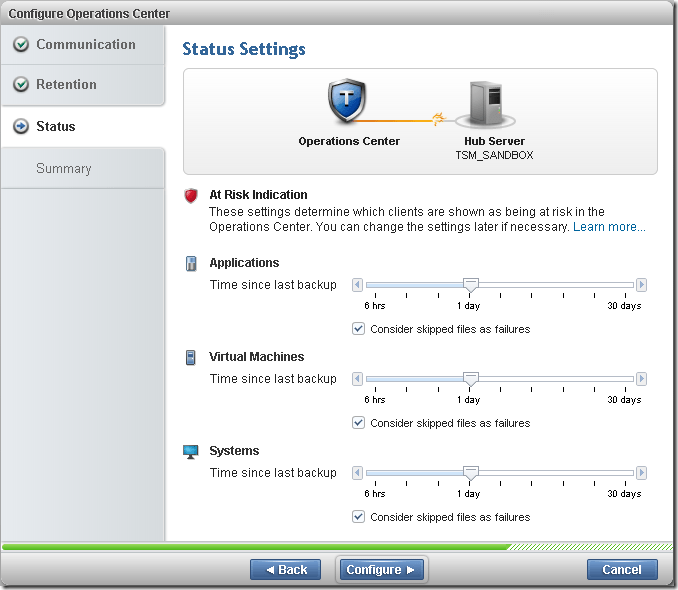

12) Configure the status settings.

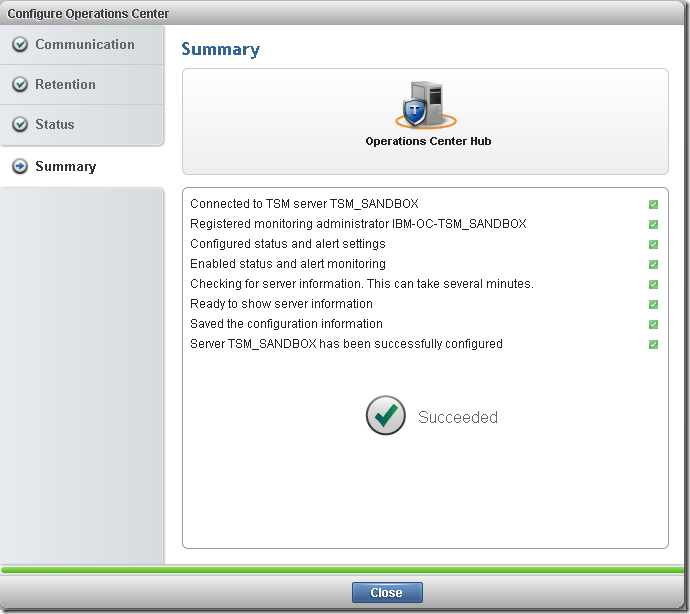

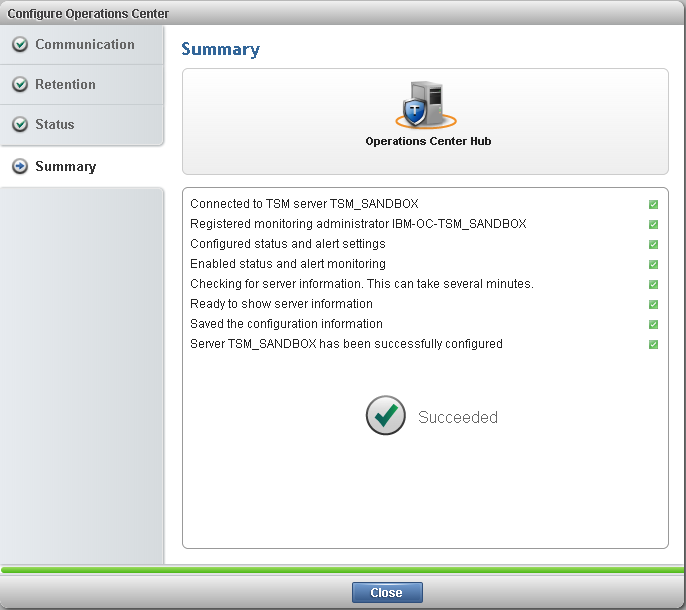

13) All set

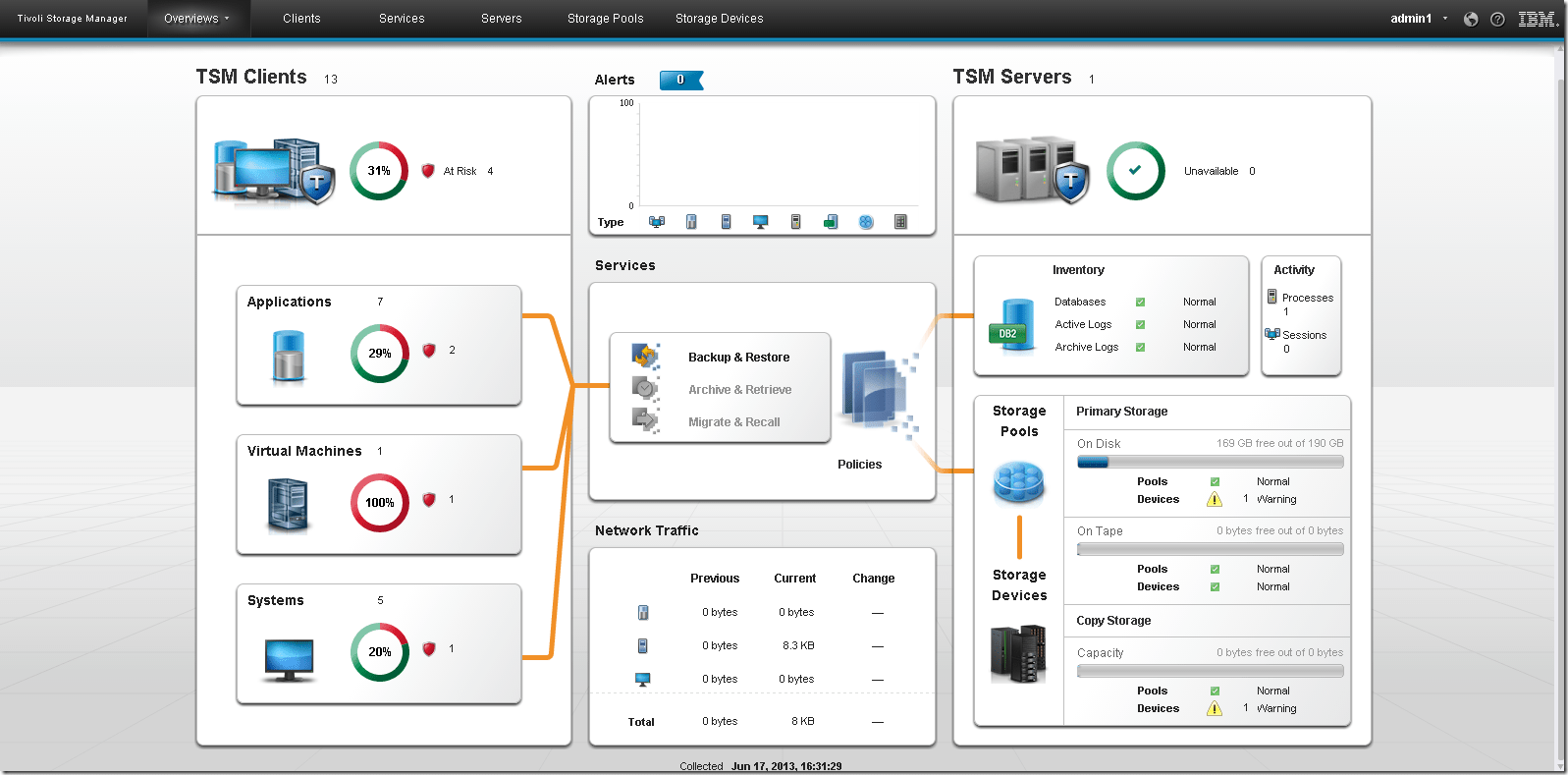

14) It looks beautiful. Isn’t it?
