Update Emulex 10G NIC driver (be2net) in ESXi 5.X

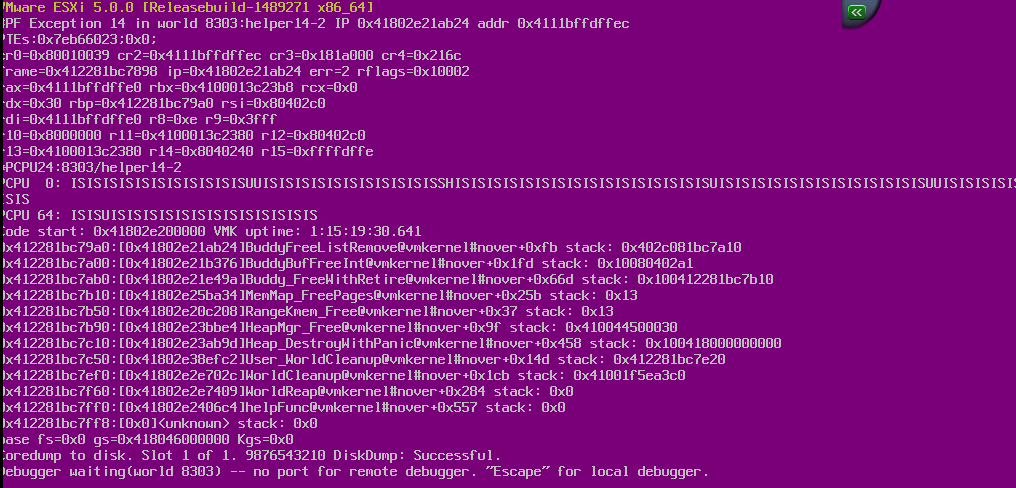

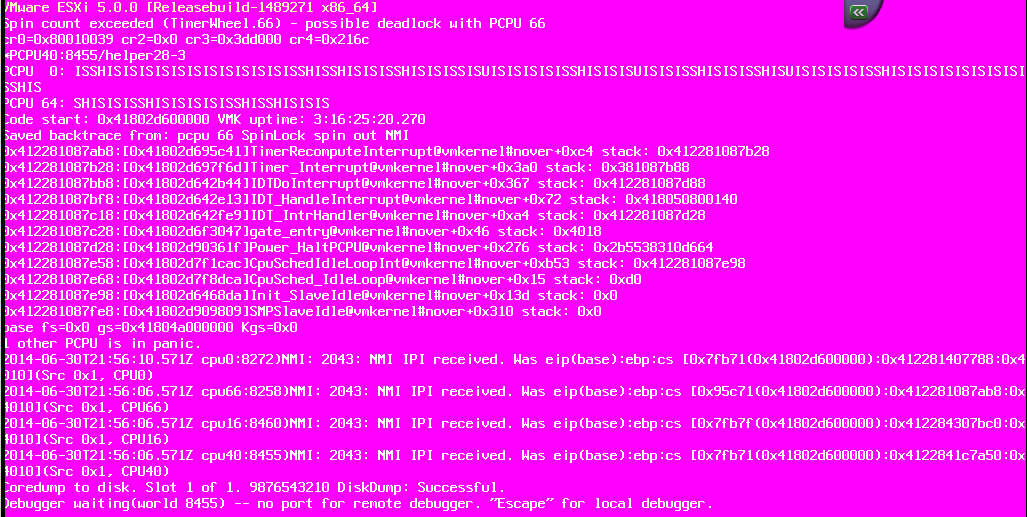

We have a IBM HX5 with ESXi 5.0 update 3 installed. The blade frequently encounters the purple screen issue. For most time, it is PF relevant errors, but Today it has some new – Spin count exceeded.



I have run the hardware diagnostic tool multiple times, but caught nothing. But I still think it is hardware related issues. I did some analysis of the dump files, and found something that I think are useful.

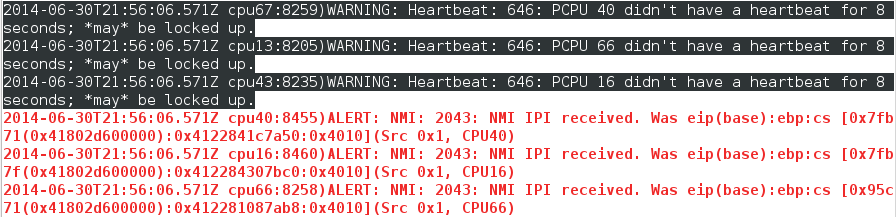

The first one is something about PCPU lost the heartbeat. I have heard that the Emulex driver causes similar issue on HS23.

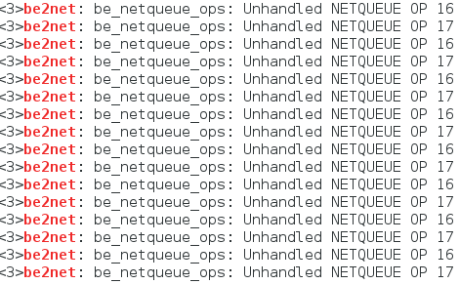

The second, I noticed there are a few ‘unhandled NETQUEUE OP’ errors. In the ESXi 5.X, the netqueue is enabled by default. Is it possible that the Emulex driver (be2net) version too low to support it well? I did see that Qlogic has similar issue, and the aftermath is PSOD.


Due the frequent PSOD, this server is not in production. So I decided to update the Emulex driver to see if it can fix it. The version was, and it is now. I will keep an eye on it in the next couple days, finger crossed 🙂

This is how I updated the be2net driver:

~ # vmware -v
VMware ESXi 5.0.0 build-1489271

~ # vmware -l
VMware ESXi 5.0.0 Update 3

Note: /usr/lib/vmware/vm-support/bin/swfw.sh checks both driver and firmware version.

~ # vmkload_mod -s be2net |grep Version
Version: Version, Build: 515841, Interface: 9.2 Built on: Oct 28 2011

/tmp # esxcli software vib install -d /tmp/be2net-
Installation Result
Message: The update completed successfully, but the system needs to be rebooted for the changes to be effective.
Reboot Required: true
VIBs Installed: Emulex_bootbank_net-be2net_4.6.247.7-1OEM.500.0.0.472560
VIBs Removed: VMware_bootbank_net-be2net_4.0.88.0-1vmw.500.0.7.515841
VIBs Skipped:

/tmp # reboot -d 0

Login back in and check the updated version:

~ # vmkload_mod -s be2net |grep Version
Version: Version, Build: 472560, Interface: 9.2 Built on: Jul 5 2013
